Winnebiko II

Miles with Maggie (1986-1988)

73 Magazine, Feburary 1988 cover - KA8OVA and KA8ZYW

73 Magazine, February 1988 cover – Steve N4RVE and Maggie KA8ZYW. 1987 photo by Karen Greene, Sullivan’s Island, South Carolina

After two years and 10,000 miles on the Winnebiko, I was ready for a few changes. My computational tools had begun to feel primitive, I missed the rich community and toolset of ham radio, I couldn’t write (or do much of anything) while riding, there was no on-board development system, and I had grown weary of traveling alone. After wrapping up the Computing Across America book project and finding myself pinned down for a few months in a brief flirtation with employment, I threw myself into development of the Winnebiko II.

I had already spent months dreaming about what it would take to have a rich set of of capabilities available while pedaling, so the project moved with a swiftness that I remember wistfully. Between my innate geekery and creeping featuritis, this new machine turned into an elaborate contraption… including a binary chord handlebar keyboard that would let me type in ASCII while pedaling.

Winnebiko II circa 1988, photo by Dan Burden

Winnebiko II circa 1988, photo by Dan Burden

It was total immersion, that summer of 1986, though of course I already had camping gear, business protocols, and the bike itself more or less fine-tuned. But the geeky parts were intense, and this photo essay of console fabrication gives a sense of the scope… intense learning curves intertwined with development of the bicycle control system, integrated systems including a hacked Model 100, the handlebar keyboard and other services run by an embedded 68HC11 microprocessor, packet data communications, remote-control features, a robust power system with 20 watts of solar panels, and lots of upgrades to the bike itself. I met a woman named Maggie who was willing to abandon her midwest lifestyle and hit the road, and there was a buzz of excitement in the air.

Photo by Thomas Forsyth, Eureka, California

In August 1986 we drove a van from Ohio to Vancouver BC, putting the yet-unfinished Winnebiko II on display at the Expo 86 world’s fair. After an amazing week of hanging out with human-power and kinetic-sculpture wizards, we found a place on Bainbridge Island (near Seattle) to finish up the major systems… then continued down the West Coast to begin what would turn out to be a 6,000-mile adventure.

Winnebiko II Innards

Winnebiko II Innards, with console unfolded during an ESPN filming in Maryland at the GEnie headquarters, October 1987

The console system shown in the photos let me type in binary at about 35 words per minute while riding, had a packet-radio mailbox for email and chatting with fellow hams, and was equipped with a speech synthesizer to let me remotely chat with people standing around the bike… or startle them with automated responses to security system alerts. I carried an HP Portable PLUS laptop in the pack, but while underway I used my old Model 100, repackaged into the console and augmented with a variety of hacks. Decades later, the machine caught the sun one afternoon in my lab, bringing back fond memories of the road:

The old Winnebiko II console in 2015

A delightful CNN piece from July 1988 gives an excellent 3-minute overview of all this paleo-geekery in use… mentioning “1.7 megabytes of memory and a battery-powered 3½-inch disk drive”:

The timing of all this could not have been better… I was using technological tools that were rapidly changing the way people interact, pedaling a geeky machine through the new reality that I called Dataspace. That name never caught on, but it was a delicious concept… a sense of home more defined by information than geography, with relationships of all kinds coalescing in this new non-physical realm. I felt as if I were wandering around my neighborhood, dropping in on friends… and the articles ranged far beyond the obvious tech markets, such as this one in the Whole Earth Review describing my “Electronic Cottage on Wheels.”

Throughout this phase of the adventure, I was publishing on GEnie… with an ongoing online column called “Computing Across America” that had about 50 chapters by the time it was over. Maggie and I made our way down the Pacific Coast, landing in Silicon Valley in February 1987. We stayed for a few months of system-building and enjoying interesting people, then drove east in the old van to take care of a few details at the Ohio base-office and then continue the bicycle trip… northeast through Ohio, Pennsylvania, and New York… then down the East Coast to Florida. Here the adventure paused as the book was finally released, with hundreds of pre-ordered copies to sign and ship. We converted an old school bus into a mothership that carried us 16,000 miles over the next year, rumbling around the US to visit trade shows, conferences, hamfests, companies, universities, and friends… converting book sales into gasoline purchases and generally enjoying life. All this was fun, but I was already planning the third version of the bike, keeping my eye open for potential lab space.

Steven K. Roberts and Winnebiko II in Eureka, California – Thomas Forsyth photo

By early 1989, we were back in Silicon Valley, working in the first of many bikelabs to conjure the beast that would roll out three years later as BEHEMOTH. This would be over-the-top in a weirdly satisfying way, but the Winnebiko II shown here was by far my favorite of the three versions. It hit the sweet spot of usability, geekery, practicality, and what my old friend David Berkstresser called weirdness quotient — the bike was packed with technology and delighted the media, yet was light enough to be practical and fun. Although architecturally inflexible, it performed its job beautifully.

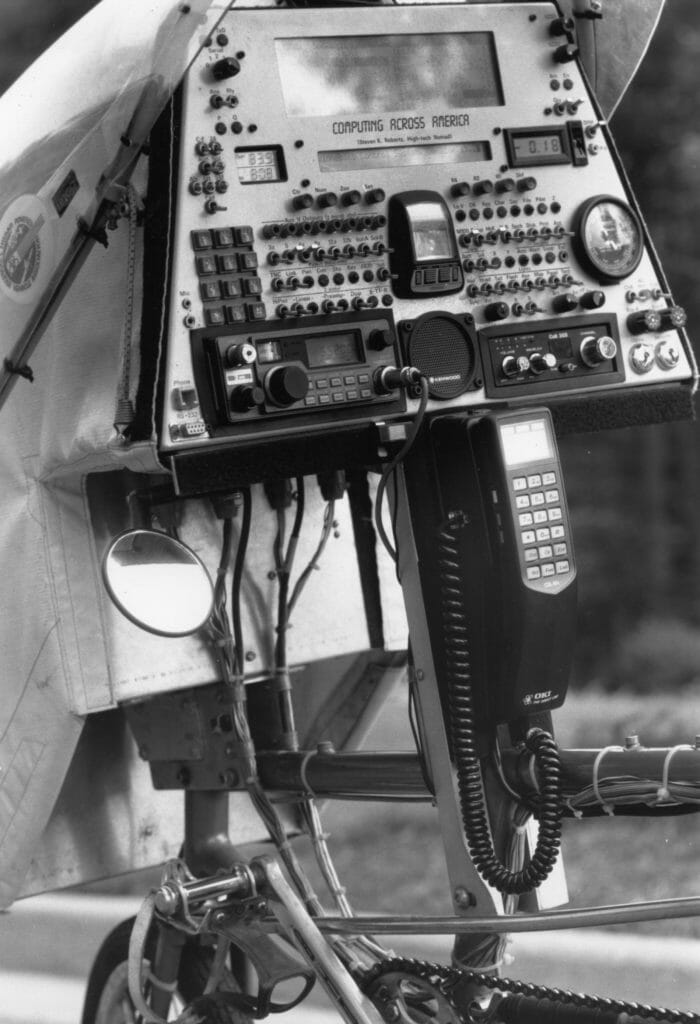

Winnebiko II console at the very end of its era, just before the beginning of the BEHEMOTH project. The Oki 491 cellular phone was fully embedded into the new bike, supporting multiple resources (modem, fax, credit card verifier, cordless phone, answering machine).

Winnebiko II Electronics feature list

  • 68HC11 Bicycle Control Processor, running Control BASIC, dedicated 2-line LCD
  • Handlebar chord keyboard with auxiliary button set on console
  • Repackaged Model 100 computer built into console, Traveling Software Booster Pak
  • Packet radio TNC (PacComm) for on-the-road email
  • Votrax speech synthesizer
  • Yaesu 290 multimode 2-meter ham radio transceiver
  • DTMF keypad for repeater autopatch use
  • DTMF decoder for remote control via ham radio
  • Cat-eye solar speed/time/distance display
  • Motion-sensing security system with remote actuation
  • CB radio
  • Analog altimeter
  • Digital Panel Meter and thumbwheel for voltage/current monitoring
  • Digital clock
  • Console switches for lights, power supplies, security, and other resources
  • 20 watts of solar panels, with charge controller
  • AC charging when utility power available
  • Console speaker
  • Ten-Tec Argonaut 515, keyer, and auxiliary solar panel & battery for HF operation
  • Bag of single-band wire dipole antennas
  • Hewlett-Packard Portable PLUS with acoustic coupler

My old documentation binder contained this 1987 document describing console operation, and it reveals the gritty level of the interface compared to the sleek systems we now take for granted. I smile when I see old video interviews in which my fingers play over the switches to boot the control system or send Touch-Tone sequences via ham radio to make the bike talk. If you’d like to learn more, here is a discussion about the anatomy of the Winnebiko II that describes the system in more detail.

There was a lot of publishing during this phase of the adventure, and here are a few relevant entry points into the archives (each piece has previous/next links at the end, as well as a trio of posts that the system thinks are related… and they usually are):

Next… BEHEMOTH — Big Electronic Human-Energized Machine… Only Too Heavy (1989-1992)
